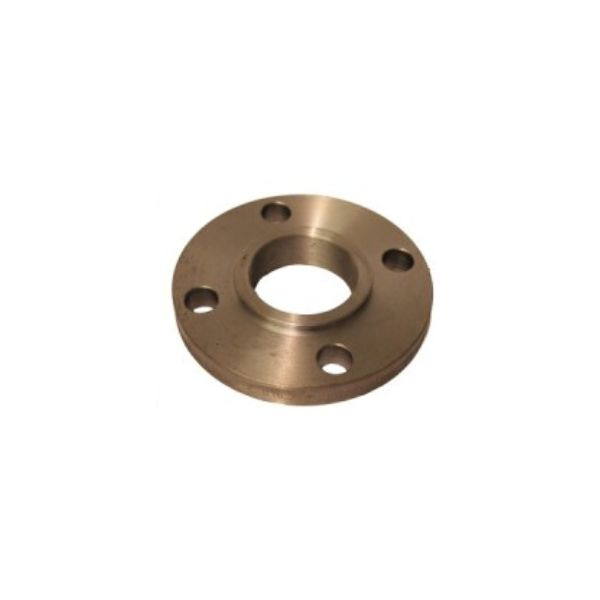

ANSI B16.5 CLASS 150 SLIP ON
Raised face.
| PART NO, | NOMINAL PIPE SIZE (MM) | OD of FLANGE (MM) | BOLT CIRCLE DIAMETER (MM) | BOLT HOLE DIAMETER (INCH) | # BOLT HOLES | THICKNESS of FLANGE (MM) | WEIGHT (KG) |
| 150SO015 | 15 | 90 | 60.3 | 5/8 | 4 | 9.6 | 0.47 |
| 150SO020 | 20 | 100 | 69.9 | 5/8 | 4 | 11.2 | 0.58 |
| 150SO025 | 25 | 110 | 79.4 | 5/8 | 4 | 12.7 | 0.86 |
| 150SO032 | 32 | 115 | 88.9 | 5/8 | 4 | 14.3 | 1.08 |
| 150SO040 | 40 | 125 | 98.4 | 5/8 | 4 | 15.9 | 1.41 |
| 150SO050 | 50 | 150 | 120.7 | 3/4 | 4 | 17.5 | 2.26 |
| 150SO065 | 65 | 180 | 139.7 | 3/4 | 4 | 20.7 | 3.43 |
| 150SO080 | 80 | 190 | 152.4 | 3/4 | 4 | 22.3 | 3.87 |
| 150SO100 | 100 | 230 | 190.5 | 3/4 | 8 | 22.3 | 5.75 |
| 150SO125 | 125 | 255 | 215.9 | 7/8 | 8 | 22.3 | 6.22 |
| 150SO150 | 150 | 280 | 241.3 | 7/8 | 8 | 23.9 | 7.38 |
| 150SO200 | 200 | 345 | 298.5 | 7/8 | 8 | 27 | 12.36 |
| 150SO250 | 250 | 405 | 362 | 1 | 12 | 28.6 | 17.1 |
| 150SO300 | 300 | 485 | 431.8 | 1 | 12 | 30.2 | 27.68 |
| 150SO350 | 350 | 535 | 476.3 | 1-1/8 | 12 | 33.4 | 35.2 |
| 150SO400 | 400 | 595 | 539.8 | 1-1/8 | 16 | 35 | 46.2 |
| 150SO450 | 450 | 635 | 577.9 | 1-1/4 | 16 | 38.1 | 49.71 |
| 150SO500 | 500 | 700 | 635 | 1-1/4 | 20 | 41.3 | 65.5 |
| 150SO600 | 600 | 815 | 749.3 | 1-3/8 | 20 | 46.1 | 90.5 |
